Flowception: Creating solution enabled Flow with Flow

Solution is a feature that has been used in the CRM space for a long time. Solutions support for Flow was announced last year -> https://flow.microsoft.com/en-us/blog/solutions-in-microsoft-flow/. One thing the post does not mention is that Flows have to be created from the solution record. If you have an existing Flow, that you want to package up into a solution, you cannot do that. To workaround this limitation, I have created a Flow to clone an exisiting Flow and make it solution enabled.

The Flow itself it not that long. Here is how it looks.

The Flow definition fits on a readable screenshot!

The first step is to select the existing Flow that you want to clone, into a solution enabled Flow. This can be done using the Flow Management Connector’s “Get Flow” action.

Solution enabled Flows, like solution enabled canvas apps, are also stored in the CDS database. The entity it used to store the Flow is called Process (logical name: workflow). It stores both the Flow definition, as well the the connection references.

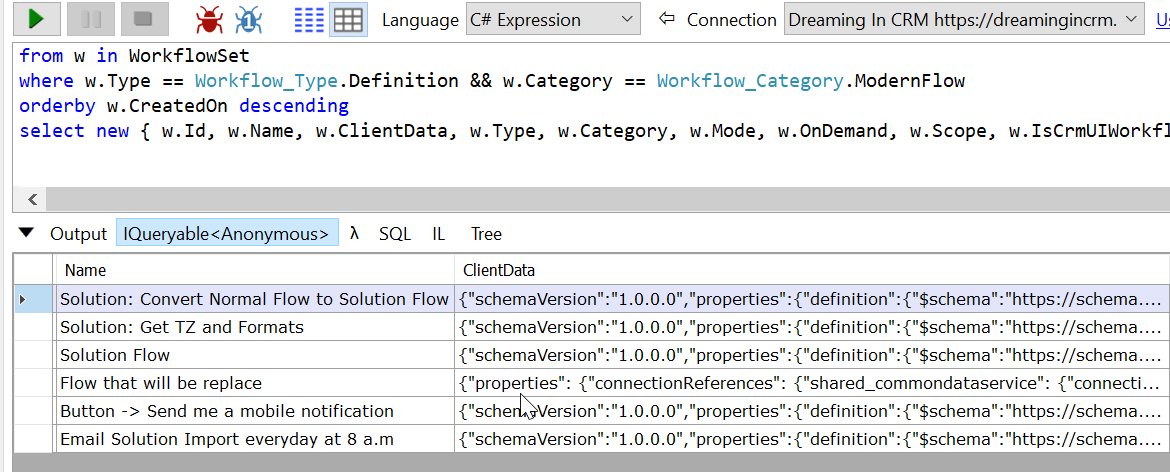

LINQ output

However, the connection references are stored differently between CDS and Flow. Here is how the connections are stored in Flow.

[{
	"connectionName": "shared-flowmanagemen-f22a175e-d99e-4e41-8404-f6823b2d4d5e",
	"displayName": "Flow management",
	"id": "/providers/Microsoft.PowerApps/apis/shared_flowmanagement"
}, {
	"connectionName": "46c0ebf24ba6458f9a582abde1185b12",
	"displayName": "Common Data Service",
	"id": "/providers/Microsoft.PowerApps/apis/shared_commondataservice"
}]

Here is how the connections are stored inside CDS workflow.

{
	"shared_flowmanagement": {
		"connectionName": "shared-flowmanagemen-f22a175e-d99e-4e41-8404-f6823b2d4d5e",
		"source": "Invoker",
		"id": "/providers/Microsoft.PowerApps/apis/shared_flowmanagement",
		"tier": "NotSpecified"
	},
	"shared_commondataservice": {
		"connectionName": "46c0ebf24ba6458f9a582abde1185b12",
		"source": "Invoker",
		"id": "/providers/Microsoft.PowerApps/apis/shared_commondataservice",
		"tier": "NotSpecified"
	}
}

As you can see one is an array and another is an object. So, this means the connection JSON has to be reshaped, when we create a Modern Flow Process record, directly in CDS. We will use select action to reshape the data, and then do a replace to cleanup the JSON.

Flow Connection JSON.png

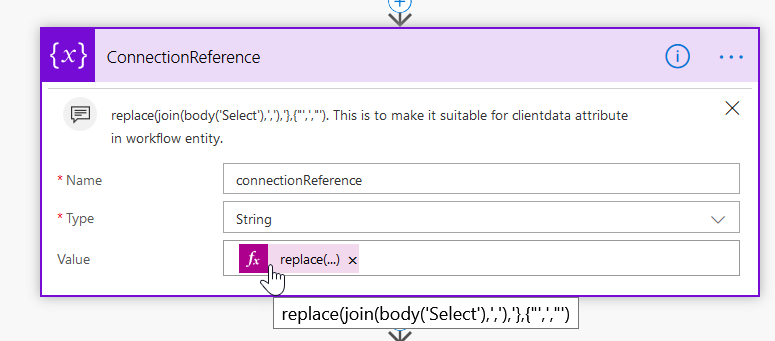

Connection References

The action below is the one that creates the Solution enabled Flow. You create the “Process” record using the CDS connection, and populate the Flow JSON in “Client Data” field.

Create Workflow.png

This is the formula I use in the concat.

concat
(
	'{"schemaVersion":"1.0.0.0","properties": { "definition": ',
	body('Get_Flow')['properties']['definition'],
	', "connectionReferences": ',
	variables('connectionReference'), '}}'
)

This creates the JSON that is accepted for the “Modern Flow” process record.

In the last step we activate (start) the newly created Flow.

Enable Flow.png

The Flow’s GUID is stored in a field called “workflowidunique” on the Process entity. So, we can use this to the retrieve the Flow, and activate it.

The crazy part of this Flow is that I was able to run the Flow on itself and add it to the solution, hence the title of the post.

Flow run.png

You can now add the Flow into the Solution, from web.powerapps.com


The newly created Flow, will have the same step Flow name, you specific in the first Get Flow step, prefixed with “Solution: “

Add Flow.png

The solution with the Flow can now be exported and imported into a new CDS environment. I hope this helps you to package some of you old Flows into a solution. This Flow can further improved by listing all Flows in the environment and doing the same process or cloning it, rather than specifying a specific Flow at design time.

You can download the Flow from https://1drv.ms/u/s!AvzjERKFC6gOwWC7Ywi5fgguPW1s

If you have any comments/feedback, please share them on the post or tweet me @rajyraman.

8 thoughts on “Flowception: Creating solution enabled Flow with Flow

  1. Brilliant!

    Any thoughts on why solution enabled flows are not visible from the Business logic -> Flows grid?
    Can only see the solution enabled flows when I am in a CDS solution and trying to ‘Add existing’ -> ‘Flow’.

    Just wondering why this is so / maybe there is something I am missing out.

    Thanks!

  2. Hi Natraj,

    Thanks for wonderful post. I am following up on the steps but somehow at the step where you have mentioned workflowid I am not getting it. Is it using the expression somehow ? Also could you tell me if the flow is solution aware why it is not showing when we select Flow –> Run Workflow menu.

    Thanks

    • Did you download the Flow from the Onedrive link? Quirk of solution Flow is that it cannot be run as button Flows at the moment. This is the current restriction.
      It is also now possible to add a Flow created outside of a solution, to a solution, if it has HTTP Request trigger just by using Flow. Navigate to Solution -> Add Existing -> Flow -> Outside solutions

      • I have downloaded the solution and I compared mine with yours and only difference was that in yours it is “body(‘Create_workflow’)?[‘workflowidunique’])” whereas in mine it is ‘workflowidunique’ . So I am not getting this value correct as a result I am not able to proceed further.

        Regarding second point I understand it is limitation but when I follow your steps of adding outside solution it does not appear. Can you point me to link which I can follow to do it correctly.

        Thanks

  3. Somehow I am able to complete the flow but when I run this it fails at Create Workflow step with 502 Bad Gateway error. Please help.
