Using Virtual Entities to query metadata

After my previous post, I continued to explore virtual entities to see what real life problems I can solve using them. One problem I could think of was metadata. How awesome would it be, if I can use Advanced Find to query entity and attribute metadata, or visualise them as a normal entity! It is not a dream anymore. I have developed an open-source solution to do this.

Here is some of the sample queries:

Query all attributes of type customer

Query by Attribute Type

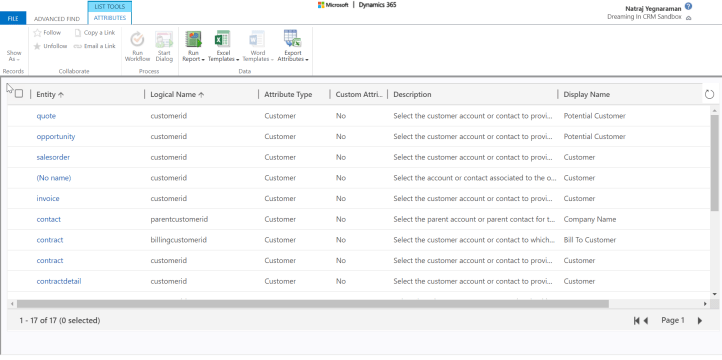

Query by Attribute Type Results

Query all mandatory attributes

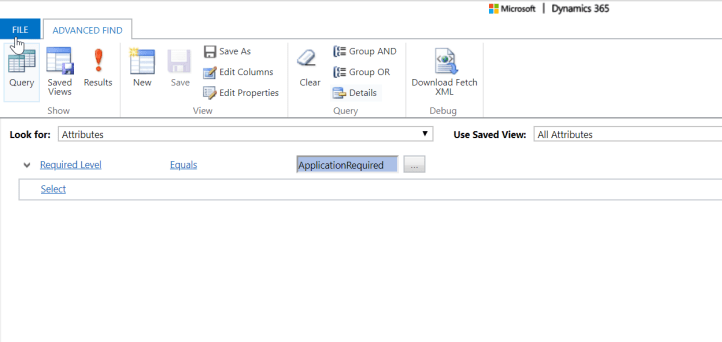

Query All Required.png

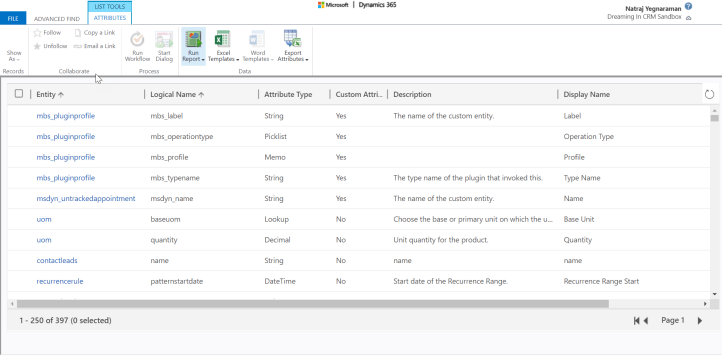

Query All Required Results.png

Query by Attribute Type and Entity

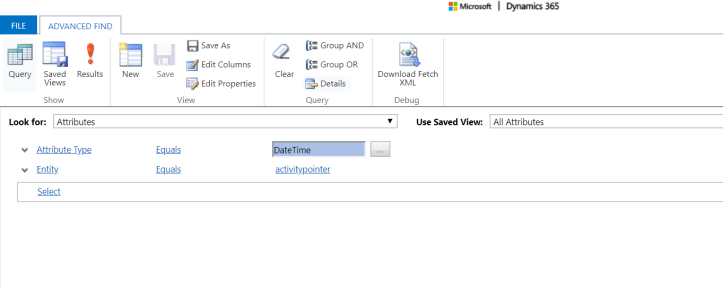

Query by Attribute Type and Entity.png

Query by Attribute Type and Entity Results.png

Query all Many to Many intersect entities

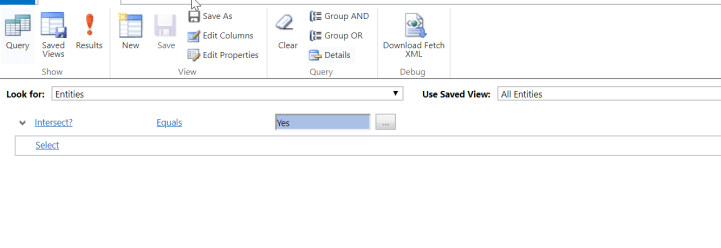

Query MM Entity.png

Query MM Entity Results

Query entities that have quick create enabled

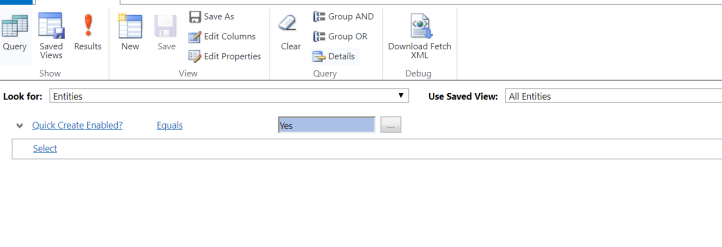

Query Quick Create

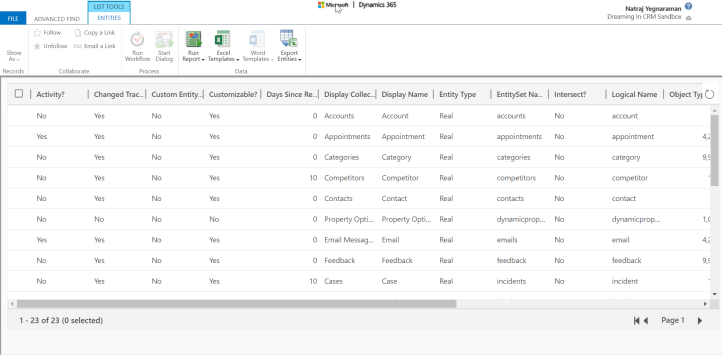

Quick Create Results

You can open the entity and see more details.

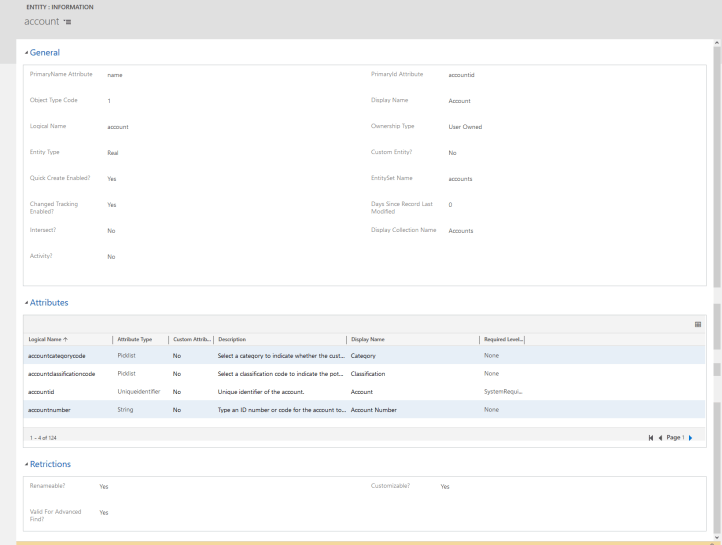

Entity Form

You can open the attribute and view more details as well.

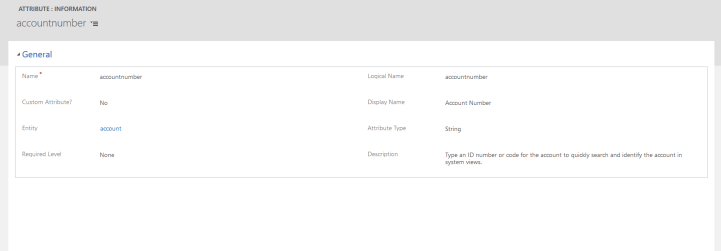

Attribute Form

All this is awesomeness is possible using the power of virtual entities. There are two virtual entities that you can query. They are called Entity and Attribute.

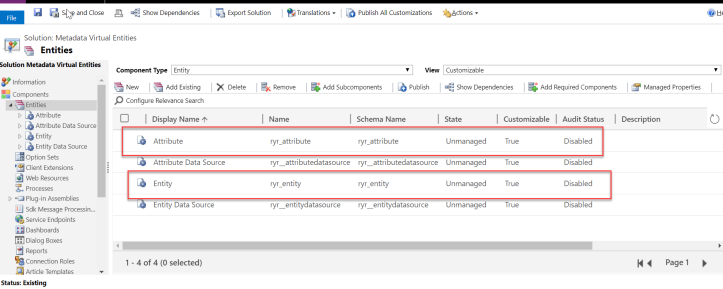

VE Solution

You can download the source code and managed solution from https://github.com/rajyraman/Metadata-Virtual-Entity/releases.

This step is important

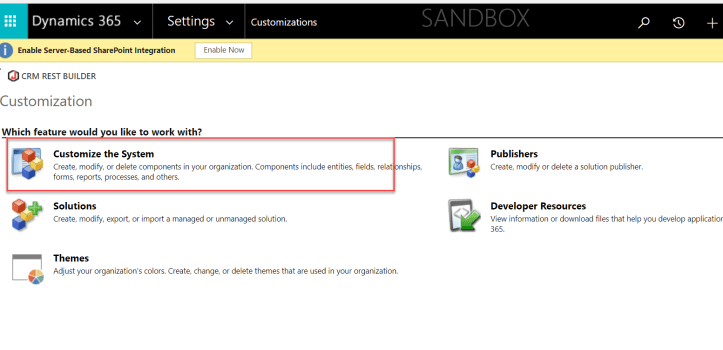

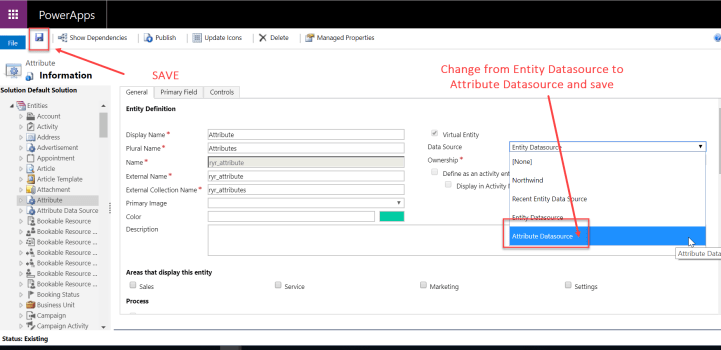

After importing the managed solution,  change the data source for the attribute entity from “Entity Datasource” to “Attribute Datasource”. You have to do this from the Customization area and not from the managed solution.


Change Datasource.png

This is because by default, the system does not allow relationships between two virtual entities that have different datasources. This exception is shown when you try to do this.

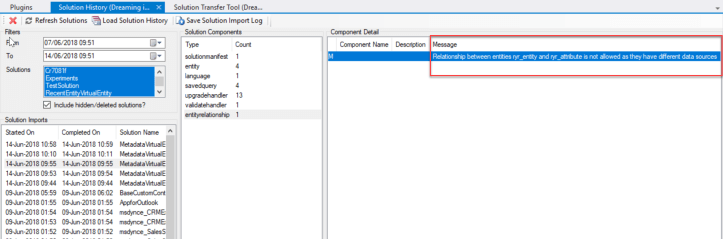

Solution Exception

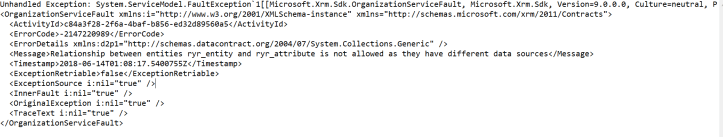

Stack Trace.png

In order to workaround this exception, you keep the data source same for the “Entity” virtual entity (parent) and “Attribute” (child) virtual entity, create the relationship and then change to the right datasource. Hence, the managed solution has the datasource set to “Entity Datasource” for the “Attribute” virtual entity, which has to be changed manually after importing the solution.

I hope this solution would be really useful for administrators. Please let me know any feedback on the post or on GitHub issues.

Sourcecode: https://github.com/rajyraman/Metadata-Virtual-Entity

Managed Solution: https://github.com/rajyraman/Metadata-Virtual-Entity/releases/latest
