Building Spirograph using PowerApps

Over the past few weeks, people have been demonstrating some cool games, built entirely using PowerApps. The reason being, that there was a contest from ThoseDynamicsGuys. If you are interested in finding out about some interesting games from this contest, watch this video from Mr.Dang himself -> https://www.youtube.com/watch?v=0-ZWqs_emQA where he reviews the games.

There were some apps that caught my eye during this period:

  1. Power Flappy by Scott Durow
  2. Power Roulette by Geetha Sivasailam
  3. Coin Dog by Makato Maeda
  4. Air Resistance by Nagao Hiroaki

I was especially fascinated by what Scott and Makato accomplished with the side scrolling nature of the games, how Geetha managed to rotate the roulette as there is no rotate angle property on images and how Nagao managed to calculate the trajectory and resistance of the ball. The first step to learning is to understand how other people do it, so I spend 4-5 days to understand how these apps have been developed.

I then wanted to develop something of my own, using the concepts that I had learnt. Spirograph was the first thing that I thought of. The easiest part was to get the equations to calculate x and y. I had to then learn the basics of starting and stopping a timer, and how to create a sense that the pattern was being “drawn”.

Since image control can render SVG, I decided to try this approach. My first challenge was how do I calculate the x and y on every tick of the timer. So, I decided to follow the approach demonstrated by Brian Dang, that involve checking and un-checking a toggle control.

Every time the toggle is checked, I can increment the iterator variable and calculate x and y for the line to be drawn and the string for the SVG path with all the lines. In SVG you can draw a line, by moving to a location specifying Mxy and then drawing the line using Lxy. Below is the formula in the OnCheck event of the slider

Set(VarI, VarI+1);
UpdateContext({x:
(((RSlider.Value-rSlider.Value) * (Cos(rSlider.Value*VarI/RSlider.Value))) + (aSlider.Value * Cos(VarI*(1-(rSlider.Value/RSlider.Value))))),
y:
(((RSlider.Value-rSlider.Value) * (Sin(rSlider.Value*VarI/RSlider.Value))) - ((aSlider.Value * Sin(VarI*(1-(rSlider.Value/RSlider.Value))))))
});
Collect(Lines, {Row: VarI,
X: x,
Y: y});
Set(PathVar, PathVar & If(PathVar="", "M", "L") & x & "," & y);
true

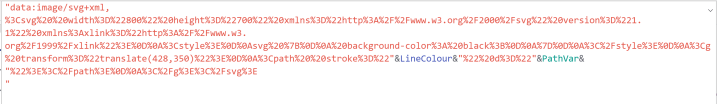

I can then simply set the SVG path’s d property from the PathVar variable, that has all the line co-ordinates. Below is the value for the Image property of the Image control that renders the Spirograph.

SVG Path.png

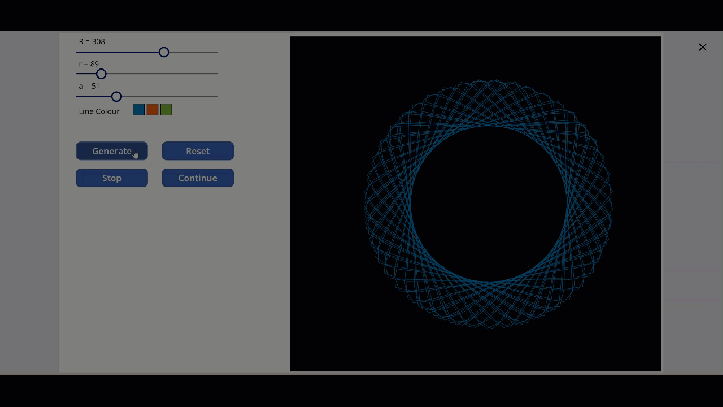

Below a video of the app in action. You can play around with the sliders and be fascinated by the patterns that it generates.

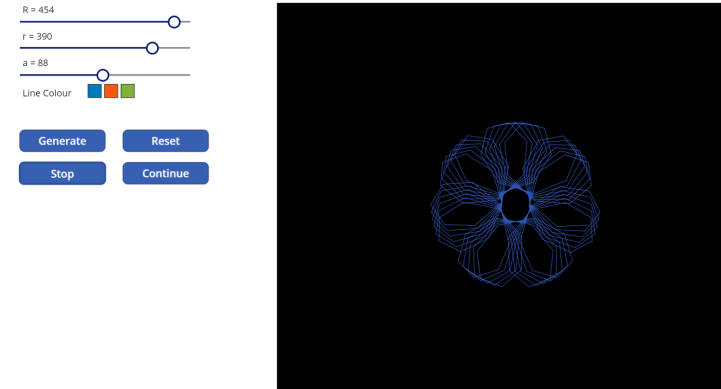

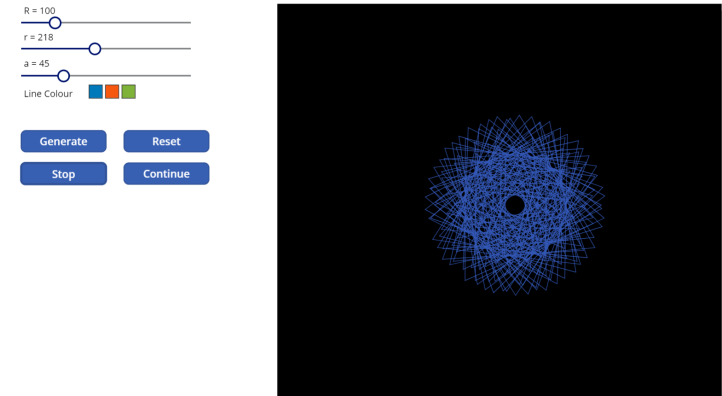

Here are some interesting patterns the app generated.

You can download the app from the PowerApps Community Gallery -> https://powerusers.microsoft.com/t5/Community-Apps-Gallery/Spirograph/m-p/175447

References:

SVG Paths – https://developer.mozilla.org/en-US/docs/Web/SVG/Tutorial/Paths#Line_commands

Math behind Spirograph – http://www.mathematische-basteleien.de/spirographs.htm
